Product Category

Worm Gearbox

NMRV worm reducers for compact right-angle speed reduction on conveyors, packaging lines and general industrial drives. Sizes 30 to 150, ratios 5 to 100, stocked from our NR Road showroom with motor flange options.

Products in Stock

NMRV worm reducers
and mounting options

We stock NMRV worm gearboxes across the standard size range with IEC motor flanges and solid shaft inputs. Share your ratio, power and mounting requirement and we will confirm availability.

Size and ratio vary by model

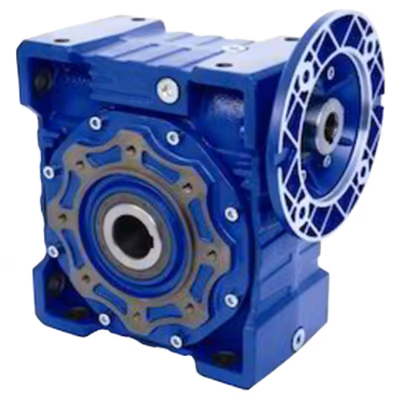

NMRV030 Worm Reducer

Compact unit for light drives and small conveyors.

Enquire Now

Size and ratio vary by model

NMRV050 Worm Reducer

Mid-size reducer for packaging and process equipment.

Enquire Now

Size and ratio vary by model

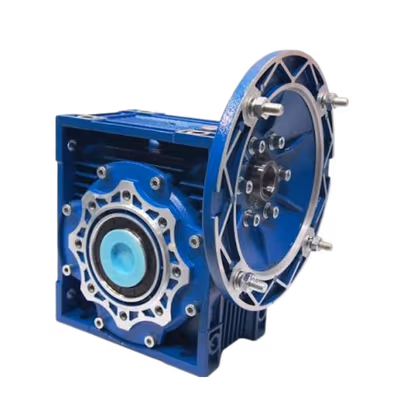

NMRV063 Worm Reducer

Popular frame for mixers, augers and material handling.

Enquire Now

Size and ratio vary by model

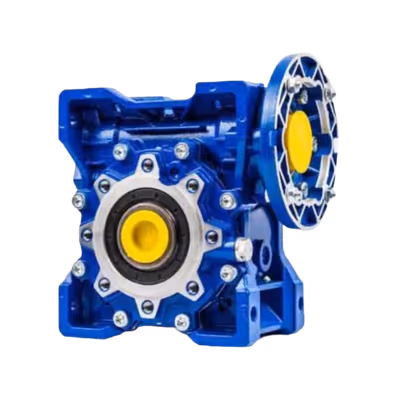

NMRV075 Worm Reducer

Higher torque option for heavier intermittent duty.

Enquire Now

Size and ratio vary by model

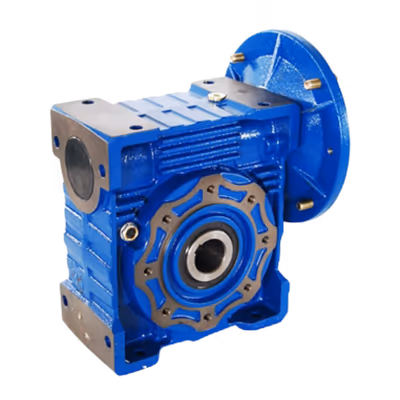

NMRV090 Worm Reducer

Suited to conveyors and machine tool auxiliaries.

Enquire Now

Size and ratio vary by model

NMRV110 Worm Reducer

Larger housing for higher power worm drives.

Enquire Now

Size and ratio vary by model

NMRV130 Worm Reducer

Top of the NMRV range for demanding plant bays.

Enquire Now

Size and ratio vary by model

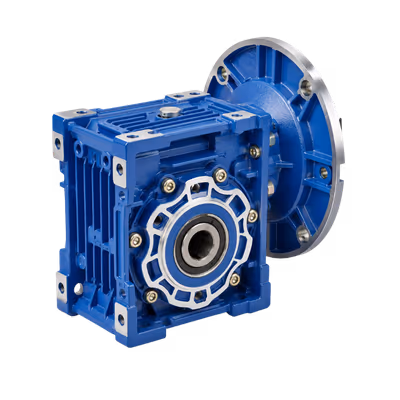

NMRV with Motor Flange

Complete IEC B5 flange packages ready for motor fitment.

Enquire Now

Build Sheet

NMRV worm reducer
specification

Die-cast aluminium alloy cases up to size 90, cast iron on larger frames. Every unit is supplied complete with synthetic oil.

NMRV Series

Product type

NMRV Worm Reducer

Size range

30, 40, 50, 63, 75, 90, 110, 130, 150

Power

0.06kW to 11kW

Reduction ratios

5 to 100

Cases

Up to 90 in die-cast aluminium alloy; larger sizes in cast iron

Lubrication

Supplied complete with synthetic oil

Mounting

Multi-mounted worm speed reducer

Motor flange

IEC B5 flanges per size chart

NMRV Series Worm Gear Reducer

Swipe horizontally to view all columns

Model	Ratio	Power KW	Power HP	Flange
NMRV030	7.5-80	0.06-0.18KW	0.08-0.25	56B5 / 63B5
NMRV040	7.5-100	0.06-0.55KW	0.08-0.75	63B5 / 71B5
NMRV050	7.5-100	0.12-0.75KW	0.16-1.0	71B5 / 80B5
NMRV063	7.5-100	0.25-1.5KW	0.33-2.0	71B5 / 80B5 / 90B5
NMRV075	7.5-100	0.55-4KW	0.75-5.0	80B5 / 90B5 / 100B5 / 112B5
NMRV090	7.5-100	0.75-4KW	1.0-5.0	90B5 / 100B5 / 112B5
NMRV110	7.5-100	0.75-7.5KW	1.0-10.0	90B5 / 100B5 / 112B5 / 132B5
NMRV130	7.5-100	0.75-11KW	1.0-15.0	100B5 / 112B5 / 132B5 / 160B5

NMRV Worm Reducer Dimensions

Swipe horizontally to view all columns

Model No.	PAM IEC	N	M	P	D 5	D 7.5	D 10	D 15	D 20	D 25	D 30	D 40	D 50	D 60	D 80	D 100
NMRV025	56B14	50	65	80	9	9	9	9	9	-	9	9	9	9	-	-
NMRV030	63B5	95	115	140	11	11	11	11	11	11	11	11	11	11	-	-
NMRV030	63B14	60	75	90	11	11	11	11	11	11	11	11	11	11	-	-
NMRV030	56B5	80	100	120	9	9	9	9	9	9	9	9	9	9	-	-
NMRV030	56B14	50	65	80	9	9	9	9	9	9	9	9	9	9	-	-
NMRV040	71B5	110	130	160	14	14	14	14	14	14	14	14	-	-	-	-
NMRV040	71B14	70	85	105	14	14	14	14	14	14	14	14	-	-	-	-
NMRV040	63B5	95	115	140	11	11	11	11	11	11	11	11	11	11	11	11
NMRV040	63B14	60	75	90	11	11	11	11	11	11	11	11	11	11	11	11
NMRV040	56B5	80	100	120	-	-	-	-	-	-	-	-	9	9	9	9
NMRV050	80B5	130	165	200	-	19	19	19	19	19	19	-	-	-	-	-
NMRV050	80B14	80	100	120	-	19	19	19	19	19	19	-	-	-	-	-
NMRV050	71B5	110	130	160	-	14	14	14	14	14	14	14	14	14	14	-
NMRV050	71B14	70	85	105	-	14	14	14	14	14	14	14	14	14	14	-
NMRV050	63B5	95	115	140	-	-	-	-	-	-	-	11	11	11	11	-
NMRV063	90B5	130	165	200	-	24	24	24	24	24	24	-	-	-	-	-
NMRV063	90B14	95	115	140	-	24	24	24	24	24	24	-	-	-	-	-
NMRV063	80B5	130	165	200	-	19	19	19	19	19	19	19	19	19	-	-
NMRV063	80B14	80	100	120	-	19	19	19	19	19	19	19	19	19	-	-
NMRV063	71B5	110	130	160	-	-	-	-	-	-	-	14	14	14	14	14
NMRV063	71B14	70	85	105	-	-	-	-	-	-	-	14	14	14	14	-
NMRV075	100/112B5	200	215	250	-	28	28	28	-	-	-	-	-	-	-	-
NMRV075	100/112B14	110	130	160	-	28	28	28	-	-	-	-	-	-	-	-
NMRV075	90B5	130	165	200	-	24	24	24	24	24	24	24	-	-	-	-
NMRV075	90B14	95	115	140	-	24	24	24	24	24	24	24	-	-	-	-
NMRV075	80B5	130	165	200	-	-	-	19	19	19	19	19	19	19	19	19
NMRV075	80B14	80	100	120	-	-	-	19	19	19	19	19	19	19	19	19
NMRV090	100/112B5	180	215	250	-	28	28	28	28	28	28	-	-	-	-	-
NMRV090	100/112B14	110	130	160	-	28	28	28	28	28	28	-	-	-	-	-
NMRV090	90B5	130	165	200	-	24	24	24	24	24	24	24	24	-	-	-
NMRV090	90B14	95	115	140	-	24	24	24	24	24	24	24	24	-	-	-
NMRV090	80B5	130	165	200	-	-	-	-	-	-	-	19	19	19	19	19
NMRV090	80B14	80	100	120	-	-	-	-	-	-	-	19	19	19	19	19
NMRV110	132B5	230	265	300	-	38	38	38	38	-	-	-	-	-	-	-
NMRV110	100/112B5	180	215	250	-	28	28	28	28	28	28	28	28	-	-	-
NMRV110	90B5	130	165	200	-	-	-	-	24	24	24	24	24	24	24	24
NMRV110	80B5	130	165	200	-	-	-	-	-	-	-	-	-	19	19	19
NMRV130	132B5	230	265	300	-	38	38	38	38	38	38	38	-	-	-	-
NMRV130	100/112B5	180	215	250	-	-	-	-	-	28	28	28	28	28	28	28
NMRV130	90B5	130	165	200	-	-	-	-	-	-	-	-	-	-	24	24
NMRV150	160B5	250	300	350	-	42	42	42	42	-	-	-	-	-	-	-
NMRV150	132B5	230	265	300	-	-	-	-	38	38	38	38	38	-	-	-
NMRV150	100/112B5	180	215	250	-	-	-	-	-	-	-	-	28	28	28	28

NMRV input and output shaft diameters

Swipe horizontally to view all columns

Model	Input Shaft (mm)	Output Shaft (mm)
NMRV030	9 / 11	14
NMRV040	11 / 14	18 / 19
NMRV050	14 / 19	25
NMRV063	19 / 24	25
NMRV075	19 / 24 / 28	28
NMRV090	19 / 24 / 28	35
NMRV110	24 / 28 / 38	42
NMRV130	28 / 38	45

Authorised Dealer

TransVLL
and stocked brands

We supply NMRV worm reducers from TransVLL with manufacturer documentation. Motor pairing and ratio selection support available from our NR Road team.

Authorised Dealer

TransVLL

Worm reducers, hoists and industrial drives

View Brand

Authorised Dealer

Bonfiglioli

Industrial gearboxes and drive systems

View Brand

Authorised Dealer

Fenner

Power transmission belts and gearboxes

View Brand

Buying Guide

How to choose
a worm gearbox

Match ratio, output speed, duty and motor flange before you order. The three points below cover what our sales team checks on every worm drive enquiry.

What ratio do you need?

NMRV units cover ratios from 5 to 100 depending on frame size. State your input speed and required output RPM so we can confirm the closest standard ratio from stock.

What power and flange?

Power ranges from 0.06kW on NMRV030 up to 11kW on NMRV130. Share your motor frame (for example 71B5 or 90B5) so we supply the correct IEC input flange.

Horizontal or vertical mounting?

NMRV reducers are multi-mounted for horizontal and vertical layouts. Tell us your shaft orientation and we will confirm the correct oil level and mounting arrangement.

Industries

Where worm gearboxes
are used

Right-angle worm drives are common wherever space is tight and speeds are low to moderate.

Packaging machinery

Carton lines, fillers and wraparound equipment.

Rubber and plastics

Extruders, calendars and batch mixers.

Food processing

Conveyors, cookers and wash-down process lines.

Woodworking

Saws, planers and feed drives on timber lines.

Ceramic and glass

Kiln drives, conveyors and finishing equipment.

Environmental equipment

Agitators, conveyors and treatment plant auxiliaries.

Machine tools

Feeds, indexers and auxiliary motion on shop floors.

General engineering

OEM builds and replacement drives in fabrication shops.

Applications

Typical
worm drive jobs

NMRV worm reducers handle the low-speed, high-reduction jobs that helical units cannot fit into the same envelope.

Conveyor head and tail drives

Right-angle mounting on belt and roller conveyors.

Packaging line indexing

Intermittent motion on carton and bottle equipment.

Mixer and agitator drives

Slow output speeds with compact footprint.

Gate and damper actuation

Controlled opening on process and utility equipment.

Hoist and lift auxiliaries

Secondary reductions on material handling systems.

Textile machine feeds

Roll drives and tension control on finishing lines.

Printing and labelling lines

Synchronised feeds on marking and packing equipment.

OEM machine builds

Standard ratio packages for equipment manufacturers.

FAQ

Worm gearbox
questions

Answers to common questions before ordering an NMRV worm reducer.

Yes. NMRV worm reducers are supplied complete with synthetic oil as per the manufacturer specification. Confirm mounting orientation when ordering so oil level is correct on installation.

Frame size sets centre distance, torque capacity and motor flange options. NMRV075 accepts higher power and larger IEC flanges than NMRV063. Use the model table to match your motor and ratio.

Yes. We stock induction motors and can advise on IEC B5 flange pairing for your frame size. Share motor kW and RPM when you enquire.

Standard ratios from 5 to 100 are available depending on frame size. Call with your required output speed and we will confirm the closest stocked ratio.

Yes. We ship pan-India from NR Road. Most standard NMRV frames dispatch the same working day when in stock.
