WPA Gearbox

WP series cast iron worm gearboxes for heavy-duty right-angle drives. Frame sizes 40 to 250, ratios 10:1 to 60:1, with solid or hollow output and IEC motor flange options from our NR Road stock.

Products in Stock

WP series worm
gearboxes

WPA, WPS, WPDA, WPDS, WPO, WPX, WPDO and WPDX variants cover horizontal, vertical and flange input layouts. Share your frame size and ratio for availability.

Frame size and ratio vary

WPA Lower Input Shaft

Standard horizontal worm drive with lower input shaft.

Enquire Now

Frame size and ratio vary

WPS Upper Input Shaft

Upper input shaft layout for specific machine interfaces.

Enquire Now

Frame size and ratio vary

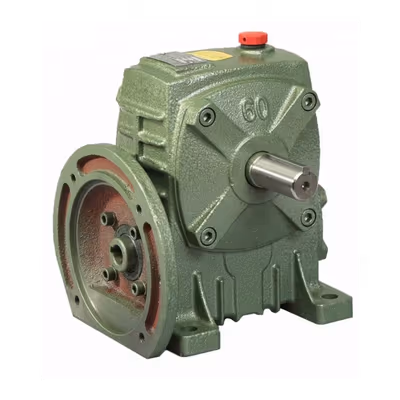

WPDA Lower Input Flange

IEC B5 motor flange on lower input configuration.

Enquire Now

Frame size and ratio vary

WPDS Upper Input Flange

Motor flange input with upper mounting arrangement.

Enquire Now

Frame size and ratio vary

WPO Vertical Up Output

Vertical upward solid output shaft.

Enquire Now

Frame size and ratio vary

WPX Vertical Down Output

Vertical downward solid output shaft.

Enquire Now

Frame size and ratio vary

WPDO Vertical Up, Flange In

Vertical output with flanged motor input.

Enquire Now

Frame size and ratio vary

WPDX Vertical Down, Flange In

Downward vertical output with flange input.

Enquire Now

Build Sheet

WP series worm
specification

Cast iron housing with single-stage worm gears. Compact structure for direct or indirect drive with solid or hollow output.

WP Series

Product type

WP Series Worm Gearboxes

Frame sizes

40 to 250

Center distance

40 to 250 mm

Gear ratio

10 to 60

Gear arrangement

Worm gears, single stage

Shaft arrangement

Right angle

Housing

Cast iron

Input

Solid input shaft or IEC B5 motor flange

Output

Solid output shaft or hollow output shaft

Models

WPA, WPS, WPDA, WPDS, WPO, WPX, WPDO, WPDX and related WP variants

WP series frame sizes and ratios

WPA worm gearboxes. Center distance matches frame size in millimetres.

Swipe horizontally to view all columns

Frame Size	Center Distance (mm)	Gear Ratio
WPA40	40	10/1, 15/1, 20/1, 25/1, 30/1, 40/1, 50/1, 60/1
WPA50	50	10/1, 15/1, 20/1, 25/1, 30/1, 40/1, 50/1, 60/1
WPA60	60	10/1, 15/1, 20/1, 25/1, 30/1, 40/1, 50/1, 60/1
WPA70	70	10/1, 15/1, 20/1, 25/1, 30/1, 40/1, 50/1, 60/1
WPA80	80	10/1, 15/1, 20/1, 25/1, 30/1, 40/1, 50/1, 60/1
WPA100	100	10/1, 15/1, 20/1, 25/1, 30/1, 40/1, 50/1, 60/1
WPA120	120	10/1, 15/1, 20/1, 25/1, 30/1, 40/1, 50/1, 60/1
WPA135	135	10/1, 15/1, 20/1, 25/1, 30/1, 40/1, 50/1, 60/1
WPA147	147	10/1, 15/1, 20/1, 25/1, 30/1, 40/1, 50/1, 60/1
WPA155	155	10/1, 15/1, 20/1, 25/1, 30/1, 40/1, 50/1, 60/1
WPA175	175	10/1, 15/1, 20/1, 25/1, 30/1, 40/1, 50/1, 60/1
WPA200	200	10/1, 15/1, 20/1, 25/1, 30/1, 40/1, 50/1, 60/1
WPA250	250	10/1, 15/1, 20/1, 25/1, 30/1, 40/1, 50/1, 60/1
